Name: ISO 19642-2 Compliant Cyclic Bending Fatigue Test Machine for Multi-Conductor Cables with Adjustable Angle Range ±90°
Brand: Infinity Machine International Inc.
SKU: C5092
Price: 50,050.00 USD
Availability: InStock

Thuis Producten Buigende Testmachine

ISO 19642-2 Compliant Cyclic Bending Fatigue Test Machine for Multi-Conductor Cables with Adjustable Angle Range ±90°

Productdetails:

Plaats van herkomst:	Gemaakt in China
Merknaam:	Infinity Machine Inc.
Certificering:	ISO
Modelnummer:	C5092

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1
Prijs:	Negotiate
Verpakking Details:	Doorzichtig vel + spons + houten karton
Levertijd:	35-40 dagen na bestelling bevestigd
Betalingscondities:	T/T
Levering vermogen:	50 set per maand

Contact

Gedetailleerde productomschrijving

Productnaam:	Automatische kabel cyclische buigtestmachine	Model:	C5092
Sollicitatie:	kabels cyclische kabelbuigtestmachines zijn geschikt voor het buigen van de meerdradige kabel, commu	test standaard:	SFF 8417 Flexcyclustestprocedure met meerdere geleiders; ISO 19642-2:2023 Cyclische buigtest voor au
Testbedrag:	2 stuks	Testsnelheid:	10~60rpm±2cpm (Frequente gebruiker van 13rpm)
Hoekwaaier:	±90° / 0°~180°	Testcycli:	1 ¢ 999,999 keer
Stroom:	Eenfase AC220V of 120V±10%, 50/60Hz	Garantie:	1 jaar

Automotive Wires Cyclic Bending Fatigue Test Machine

Product Overview

The Auto Cable Cycle Flexing Test Machine evaluates bending fatigue performance for various cable types, compliant with ISO 19642-2 standards. This specialized testing equipment assesses cable conductivity and overall quality through repeated cyclic bending movements.

Applications

Multi-conductor cables
Communication cables
Data cables
Robot cables
Automotive cables
Earphone wires
Machine cables

Testing Methodology

The testing process involves short-circuit connecting one end of the cable, fixing it to a rotation plate, applying weights, and performing left-right rotational movements to assess cable conductivity after repeated cycles.

Compliance Standards

ISO 19642-2 Road vehicles - Automotive cables - Part 2: Test methods
ISO 19642-2:2019 & ISO 19642-2:2023
ISO 14572
GB/T 25085.2--2024
SFF 8417 Multi Conductor Cable Flex Cycle Test Procedure

Testing Configuration

Technical Specifications

Parameter	Specification
Model	C5092
Test Amount	2 pcs
Test Speed	10~60rpm±2cpm (Frequent user of 13rpm)
Angle Range	90°
Min Display Angle	±1°
Testing Cycles	1～999,999 times
Guide Wheel Radius	R13, R19, R25, R37, R55, R69, R82, R107 (or customized)
Diameter of Rotation Plate	275mm
Weights	100g, 200g, 500g, 1000g (or customize)
Dimension (W×D×H)	1280×724×1320mm
Weight	350kg
Power Supply	Single phase AC220V / AC120V 50/60Hz 5A or specified by user

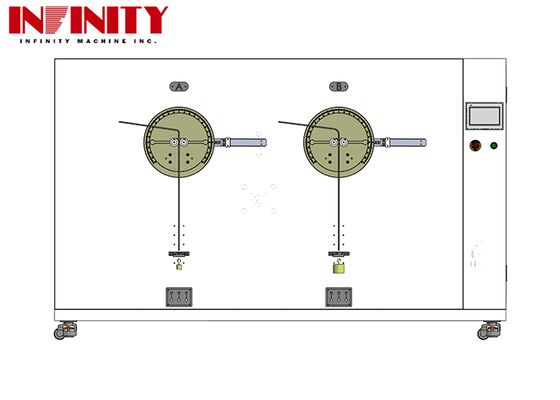

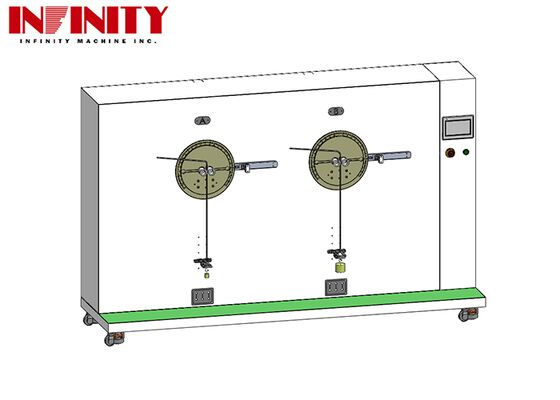

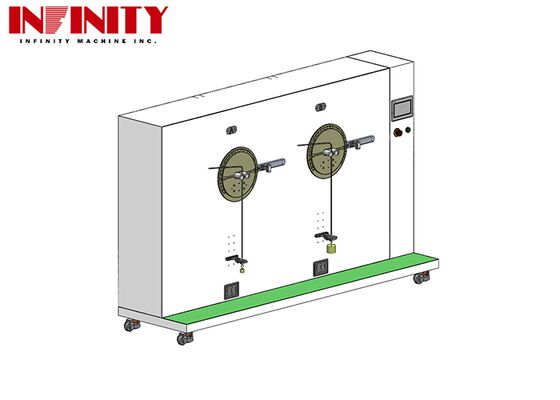

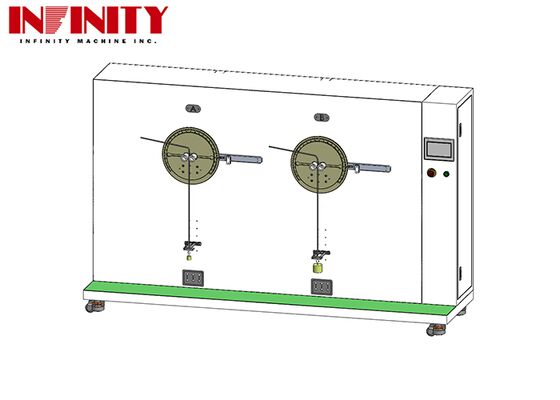

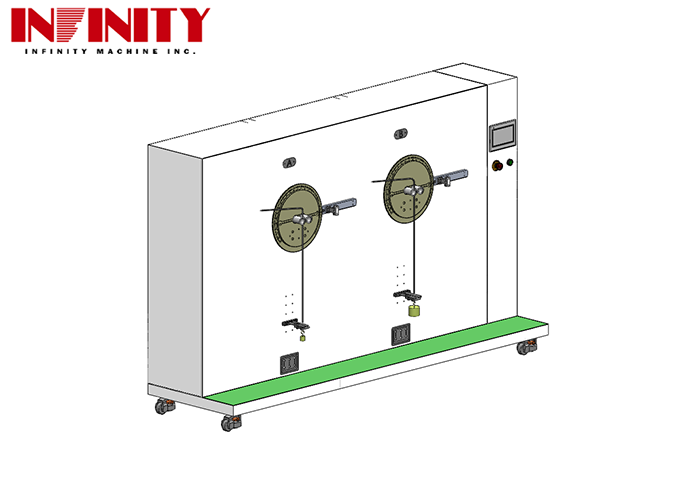

Product Appearance

Packaging and Shipping

Automotive cables cyclic bending test machine is packaged in wooden crates to prevent damage during transportation. Each crate features clear shipping marks for easy identification.

We partner with reliable shipping companies to ensure safe handling and timely delivery. Customers receive tracking information to monitor shipment status throughout the transportation process.
