Robotic Cable Torsion Test Machine CRIA 0003.2-2016 Compliant with 4 Test Stations and Adjustable Torsion Angle

Robotic Cable Torsion Test Machine CRIA 0003.2-2016 Compliant with 4 Test Stations and Adjustable Torsion Angle

  • Robotic Cable Torsion Test Machine CRIA 0003.2-2016 Compliant with 4 Test Stations and Adjustable Torsion Angle
  • Robotic Cable Torsion Test Machine CRIA 0003.2-2016 Compliant with 4 Test Stations and Adjustable Torsion Angle
  • Robotic Cable Torsion Test Machine CRIA 0003.2-2016 Compliant with 4 Test Stations and Adjustable Torsion Angle
Robotic Cable Torsion Test Machine CRIA 0003.2-2016 Compliant with 4 Test Stations and Adjustable Torsion Angle
Productdetails:
Plaats van herkomst: GEMAAKT IN CHINA
Merknaam: Infinity Machine Inc.
Certificering: ISO
Modelnummer: IC2274
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1
Prijs: Negotiate
Verpakking Details: Doorzichtig vel + spons + houten karton
Levertijd: 35 ~ 45 dagen na bestelling bevestigd
Betalingscondities: T/T
Levering vermogen: 50 sets per maand
Contact
Gedetailleerde productomschrijving
Productnaam: Robotachtige kabeltorsietestmachine CRIA 0003.2-2016 Model: IC2274
Sollicitatie: Robotische kabeltorsietestmachines zijn geschikt voor de torsietest van meeraderige kabels en commun Normen: Voldoet aan normen zoals die van de China Robot Industry Alliance, CRIA 0003.2-2016 Special Cables f
Werkstation: 4 orsie hoek: 1~±180° /±270° / ±360° (aanpasbaar)
Testsnelheid: 1~30 (Regelbare) cycli/min Stroom: AC220V of AC120V
Garantie: 1 jaar

Robotic Cable Torsion Test Machine CRIA 0003.2-2016 Wire Life Testing Machine
Comprehensive testing equipment for multi-core cables and communication cables compliant with CRIA 0003.2-2016 standards for industrial robot special cables.
Product Overview

Model: IC2274

Compliance: China Robot Industry Alliance CRIA 0003.2-2016 Special Cables for Industrial Robots -- Part 2: Test Methods

Application

Designed for torsion testing of multi-core cables and communication cables. Performs repeated torsion tests on longitudinally installed metal wires to evaluate plastic deformation resistance and detect defects during repeated torsion testing.

Technical Specifications
Item Specification
Test Station 4 stations (Customizable)
Sample Diameter 3~15mm (Customizable)
Specimen Test Length 500~1000mm (Customizable)
Sample Torsion Speed 1~30 cycles/min (Adjustable)
Torsion Angle 1~±180° /±270° / ±360° (Customizable)
Control Method Touch screen control
Counting Digits 0-99999999 cycles
Motor Servo motor (Japan)
Machine Weight Approx. 400 Kg
Working Power Supply AC220V, 50Hz ; AC120V, 60Hz (specifiable)
Equipment Power 1.8KW
Equipment Dimensions W1700*D740*H1700mm

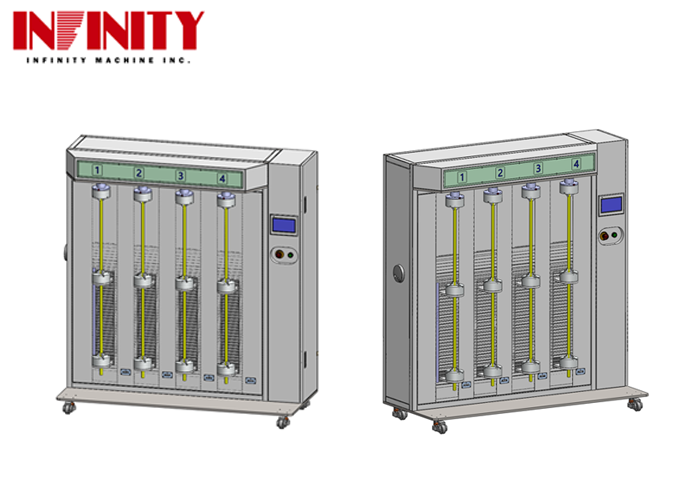

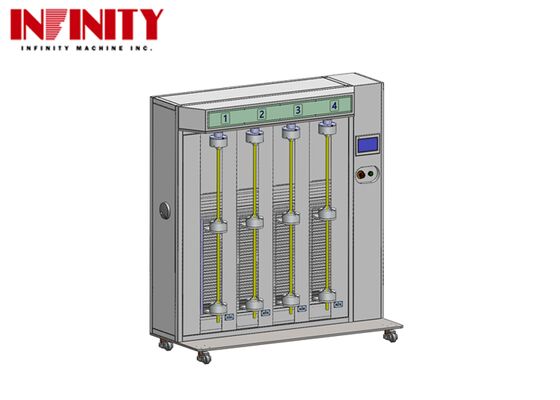

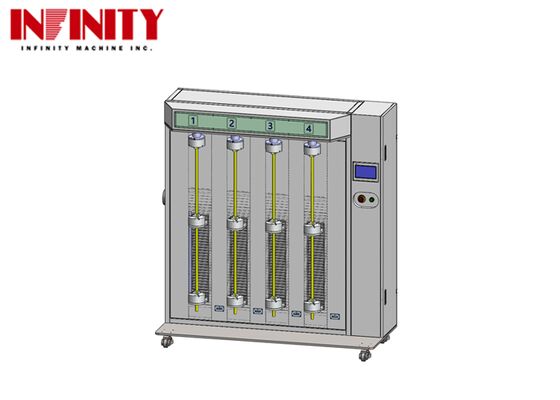

Product Appearance
Robotic Cable Torsion Test Machine CRIA 0003.2-2016 Compliant with 4 Test Stations and Adjustable Torsion Angle 0 Robotic Cable Torsion Test Machine CRIA 0003.2-2016 Compliant with 4 Test Stations and Adjustable Torsion Angle 1
Packaging and Shipping
  • Product Packaging: The robot wire torsion tester is securely packaged in a wooden crate to prevent damage during transportation. The crate is sealed and labeled with product information for easy identification.
  • Shipping: Shipping is handled by reliable and experienced shipping companies. Transportation is arranged to ensure timely delivery and safe handling. Customers receive tracking information to monitor shipment status.
Related Product Recommendation
Contact our sales team for personalized product recommendations based on your specific testing requirements.
